TPMS Wiring and Coding Guide for W213

[maximusmx]

Can anyone recommend a guide on how to code and connect a TPMS for a W213?
I recently purchased a TPMS on eBay and would like to install and code it to make it visible on the IC.



[User]

You definitely need to change the coding in EIS213 IC213 SAM in front and I am not sure about SAM in the back. And it should work, use DTS Monaco for this. You should find the CAN connection in the back on the right side.



[Basa15]

How did you get TPMS to work on a W213? I want to do the same.



[pretrofit]

It's not that hard. You can do this retrofit in a couple of hours.

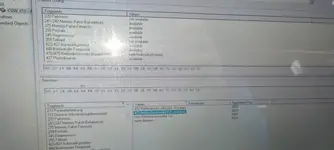

You need to disable 477 and enable 475 in EIS, and also make TPM available in ECU list of EIS, and also activate TPM menu in IC.
After that you can write new TPMS sensor IDs (which are written on the sensors) via Xentry if the sensors are OEM.
If you plan to use third party sensors like Autle etc., you will also need a TPMS teaching tool. In this case, you can either write the old ECU IDs (by reading them via Xentry, DTS Monaco or a special tool) to the new sensors, or generate random ECU IDs for the sensors and perform an OBD teach using a TPMS teaching tool.



[reddeuil]

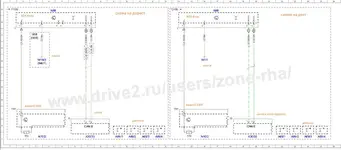

CAN and power connection activate 475.
See retrofit description.
